Front Wheel Housing Liner

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The wheel housing liners were changed and are one piece, unlike the illustration.

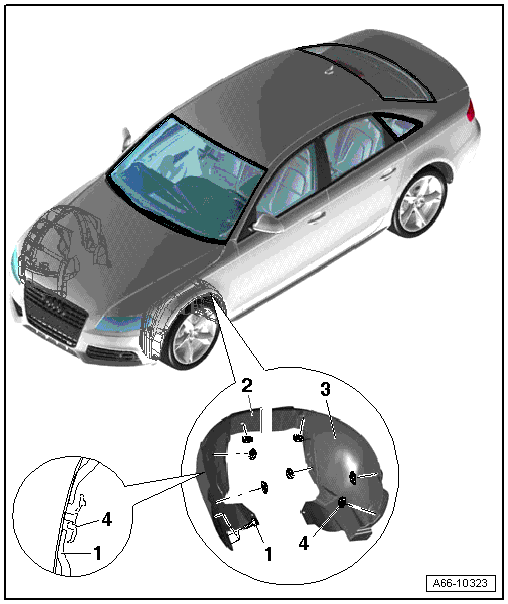

Fig 1: Front Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
Wheel Housing Liner
- Removing:
- Drive axle Cover, Removing. Refer to Drive Axle Cover .
- Press in front wheel accordingly.
- Remove the bolts on the lower wheel housing liner.
- Loosen the retainer on the clip, for example, using a small screwdriver, and slide the clip sideways off the retaining pins.
  -- Disengage wheel housing liner from fender and pull downward and out.
- Install in reverse order of removal.
Wheel Housing Liner
Clip
- Quantity: 7
  NOTE:
  After removing the wheel housing liner, the clips must be replaced.

Release the Clip

-- To remove the clips -3-, unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B-.

Fig 2: Identifying Clips -3-, Release Lever -2- And Pin -1-

Courtesy of AUDI OF AMERICA, LLC

-- The Locking Pliers VAS6199 may also be alternatively used to release the clips.
