Overview - Front Wheel Housing Liner, AUDI RS 4

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

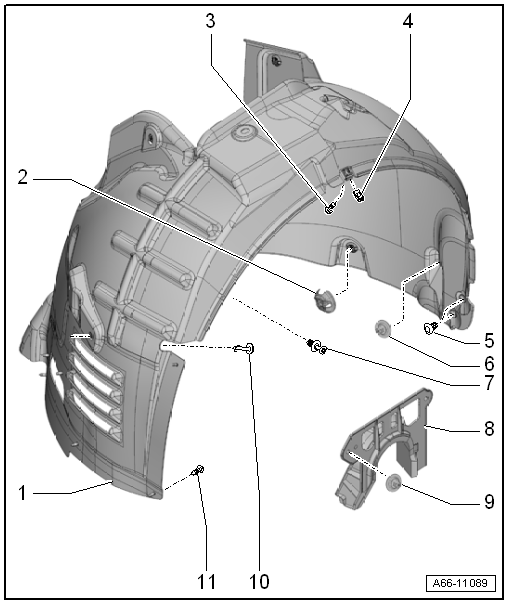

Fig 1: Overview Of Front Wheel Housing Liner (Audi RS 4)
GWWA66-11089Courtesy of AUDI OF AMERICA, LLC
  1. Front Wheel Housing Liner
  2. Retaining Clip
    • Quantity: 6
  3. Bolt
    • 1.7 Nm
  4. Bracket
    • For the wheel housing liner to the fender
  5. Expanding Clip
    • There are different versions.
    • Quantity: 2
  6. Nut
    • 1.7 Nm
  7. Expanding Clip
    • There are different versions.
  8. Drive Axle Cover
  9. Nut
    • 1.7 Nm
    • Quantity: 2
  10. Quick Release
  11. Bolt
    • 2.1 Nm
    • Quantity: 5
