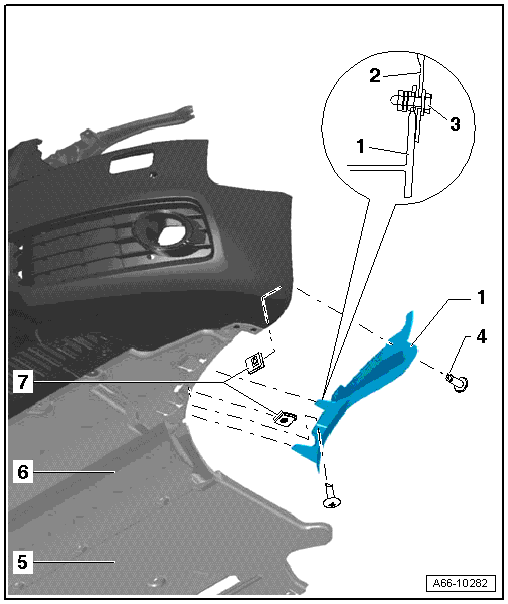

Front Wheel Spoiler, Assembly Overview
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Spoiler
-- Remove the bolts in the wheel housing liner in the spoiler area.
-- Press the wheel housing liner to the side in the spoiler area and loosen the locking pins.
-- Remove the wheel spoiler under the wheel housing liner.
- Clamping Pin
- Wheel Housing Liner
- Bolt
- 1.5 Nm
- Front Noise Insulation
- Spring Nut
- Slide onto the noise insulation.
