Spoiler, Removing And Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Spoiler must also be adhered with an additional adhesive sealing bead in addition to adhesive strips.

Only use Assembly Adhesive -D 172 090 A2- to install the spoiler.

Removing Roof Edge Spoiler

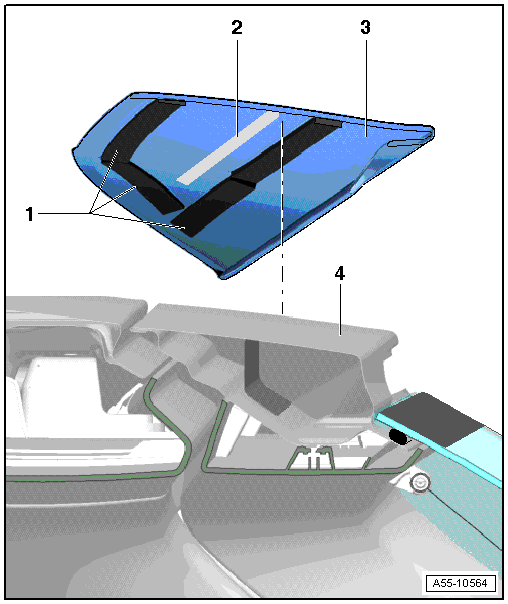

Fig 1: Removing Roof Spoiler
GWWA55-10564Courtesy of AUDI OF AMERICA, LLC
  1. Double Sided Adhesive Tape
    • Remove protective paper just before installation.
  2. Adhesive Bead
    • Assembly Adhesive -D 172 090 A2-
    • Apply a 3 mm diameter adhesive bead.
    • Audi RS 4: 4 mm adhesive bead
    • Cut nozzle tip back accordingly.
  3. Roof Edge Spoiler
    CAUTION:

    Rear lid and spoiler must be completely free of dust and grease in adhesion area.

    • When removing, protect adjacent painted areas on lid with fabric reinforced adhesive tape.
    • Heat the adhesion area on the lid using the Hot Air Gun VAG1416.
    • Remove spoiler from rear lid begging with side.
    • Completely remove adhesive residue from adhesive bands on rear lid.
    • Cut back residual bead from adhesive on rear lid between adhesive bands.
    • Before installing new spoiler, clean surfaces to be adhered with Cleaning Solution D 009 401 04.
    • Wipe cleaned surfaces with paper towel.
    • Apply adhesive over entire spoiler width between rear adhesive bands.
  4. Rear Lid

Adhering Spoiler

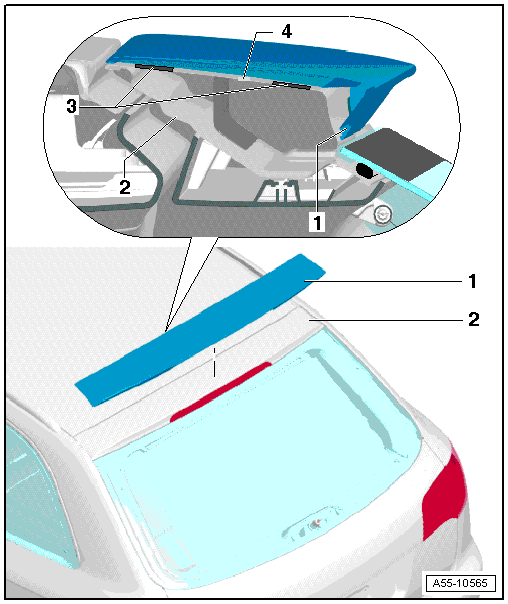

Fig 2: Adhering Spoiler
GWWA55-10565Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid Spoiler
  2. Rear Lid
  3. Double Sided Adhesive Tape
    • Part of delivery package.
    • Remove protective paper just before installation.
  4. Adhesive Bead
    • Cut back the nozzle tip:
      • Audi A4: 3 mm diameter
      • Audi RS 4: 4 mm diameter
    • Apply the adhesive added to the delivery package between the adhesive bands over the entire width of the spoiler.
    • Place spoiler so that it comes in contact with and is centered on rear lid.
    • Press spoiler down firmly beginning in center and working towards outside.
    • Secure spoiler with adhesive tape while curing.
      CAUTION:

      Vehicle must stay at room temperature at least 4 hours after spoiler is installed.
