Overview - Roof Railing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

If being re-used, install the nuts and screws with locking compound.

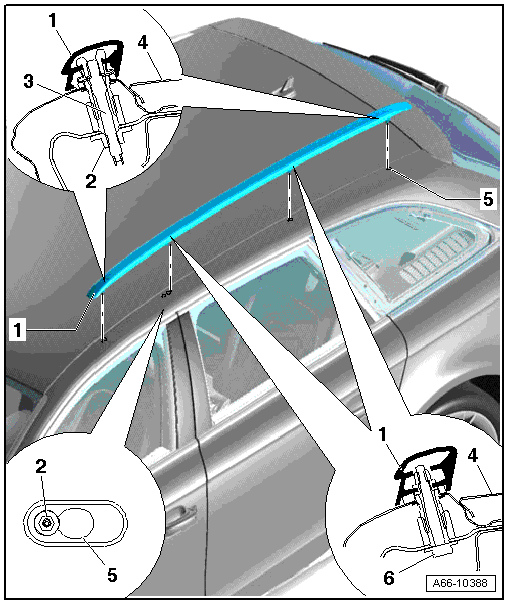

Fig 1: Overview Of Roof Railing
GWWA66-10388Courtesy of AUDI OF AMERICA, LLC
  1. Roof Railing
    • Lower the headliner. Refer to HEADLINER, REMOVING AND INSTALLING (SEDAN) .

      -- Adjusting elements must be pushed into the roof and be in the installation position with slight pretension.

      -- Place railing on roof and threaded pins through adjusting elements.

    • Follow the installation sequence:

      -- First tighten the screws and then the nuts to the tightening specification.

  2. Adjusting Element
    • Insert the front adjusting element and both rear adjusting elements into the holes and slide them forward into their installation position.
    • Insert the remaining adjusting element (second element shown from the front) into the hole and slide it toward the rear into its installation position.
    • Position the adjusting elements so that it makes contact, with light pre-tension of 0.3 Nm.
  3. Nut
    • 10 Nm
  4. Bolt
    • 10 Nm
  5. Roof
