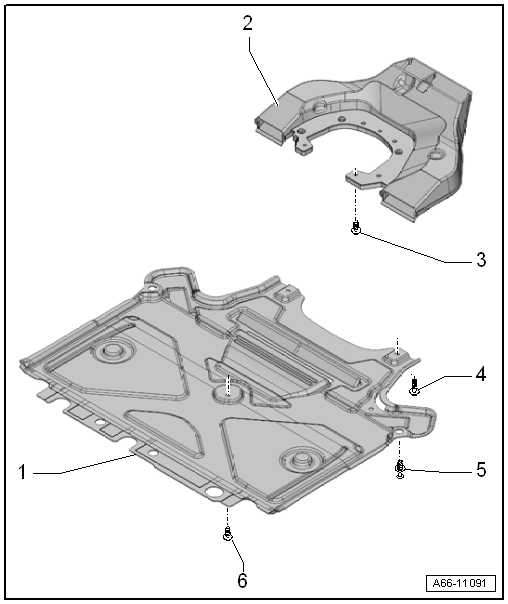

Rear Noise Insulation, Air Guide
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Noise Insulation
- For the transmission
- Removing and installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
- Air Guide Channel
- For the transmission
- Removing and installing. Refer to AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 5
- Bolt
- 2.1 Nm
- Quantity: 2
- Expanding Clip
- Quantity: 2
- Bolt
- 2.1 Nm
