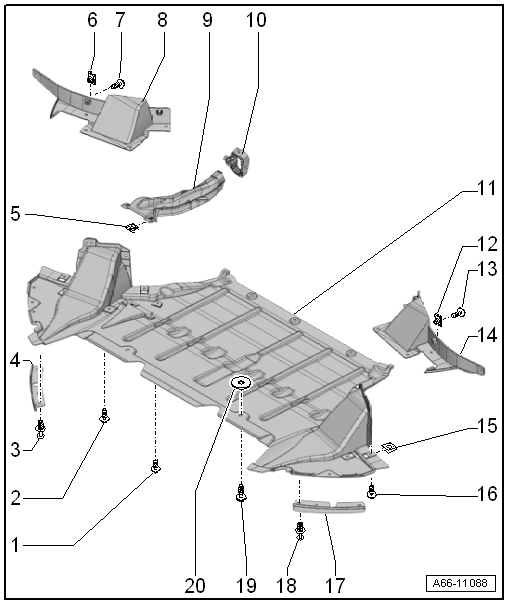

Front Noise Insulation, Air Guide
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 5 Nm
- Quantity: 3
- Quick Release
- Quantity: 4
- Expanding Clip
- Quantity: 3
- Right Spoiler Lip
- Removing and installing. Refer to SPOILER LIP, REMOVING AND INSTALLING .
- Metal Nut
- Quantity: 3
- Clip Nut
- Quick Release
- Right Inner Wheel Spoiler
- Removing and installing. Refer to FRONT INNER WHEEL SPOILER, REMOVING AND INSTALLING .
- Air Guide Channel
- For center differential
- Removing and installing. Refer to AIR GUIDE CHANNEL, REMOVING AND INSTALLING .
- Mount
- For air guide channel
- Front Noise Insulation
- For the engine
- Removing and installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
- Clip Nut
- Quick Release
- Left Inner Wheel Spoiler
- Removing and installing. Refer to FRONT INNER WHEEL SPOILER, REMOVING AND INSTALLING .
- Metal Nut
- Quantity: 4
- For the quick release
- Quick Release
- Quantity: 4
- Left Spoiler Lip
- Removing and installing. Refer to SPOILER LIP, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 3
- Quick Release
- Quantity: 5
- Rubber Washer
