Emblem, Removing and Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the reinforcement brace. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .

-- Lift the tab -2- in the direction of -arrow- and unlock the tabs -1-.

-- Remove the emblem -3- from the radiator grille -4-.

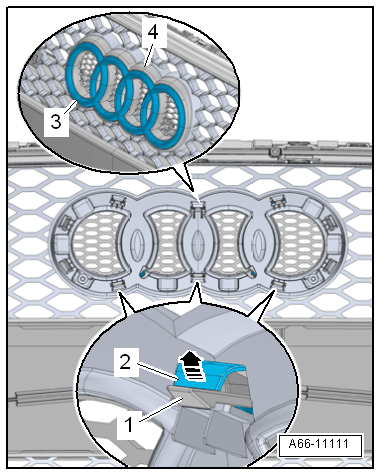

Fig 1: Removing/Installing Emblem

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal. Note the following:

-- Press on the emblem until it audibly engages.

-- Install the reinforcement brace. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
