Dimensions - Rear Lid Name Badges And Emblems, Sedan

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Rear Lid, Sedan

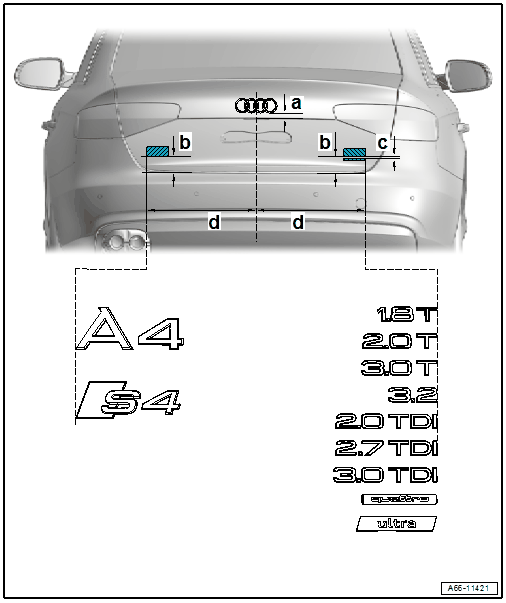

Fig 1: Placing Name Badges And Emblems On Rear Lid (Sedan, 1 Of 2)
GWWA66-11421Courtesy of AUDI OF AMERICA, LLC
NOTE:

The dimension -c- is measured from the lower edge of the engine displacement emblem to the upper edge of the quattro or ultra name badge.

Market-Specific

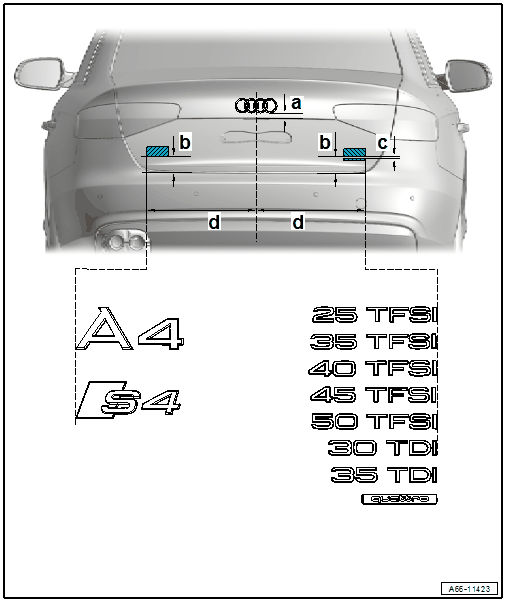

Fig 2: Placing Name Badges And Emblems On Rear Lid (Sedan, 2 Of 2)
GWWA66-11423Courtesy of AUDI OF AMERICA, LLC
NOTE:

The dimension -c- is measured from the lower edge of the name badge to the upper edge of the quattro badge.
