Rear Lid, Avant

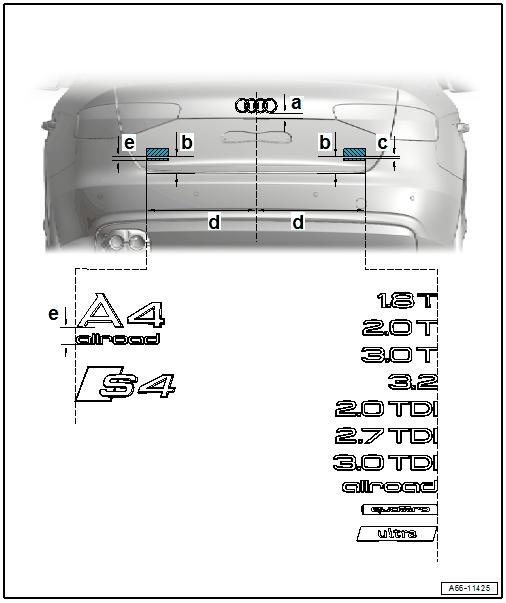

Fig 1: Placing Name Badges And Emblems On Rear Lid (Avant, 1 Of 3)

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 20 mm
Dimension -b- = 89 mm
Dimension -c- = 4 mm
Dimension -d- = 458 mm
Dimension -e- = 21 mm

NOTE:

The dimension -c- is measured from the lower edge of the engine displacement emblem to the upper edge of the allroad; quattro or ultra badge.

The dimension -e- is measured from the lower edge of the badge to the upper edge of the allroad badge.

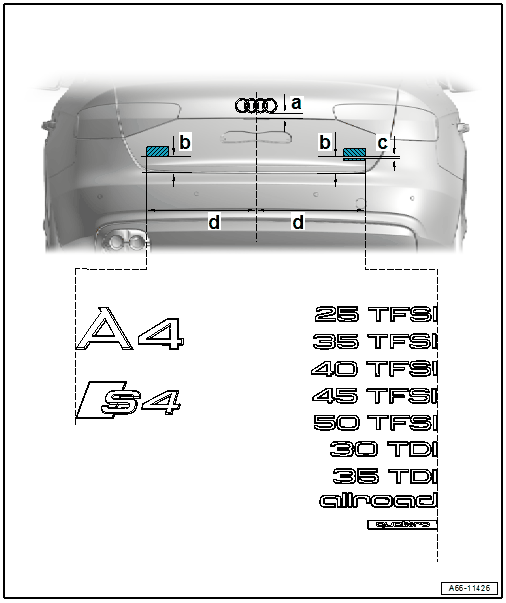

Fig 2: Placing Name Badges And Emblems On Rear Lid (Avant, 2 Of 3)

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 20 mm
Dimension -b- = 89 mm
Dimension -c- = 4 mm
Dimension -d- = 458 mm
Dimension -e- = 21 mm

NOTE:

The dimension -c- is measured from the lower edge of the badge to the upper edge of the quattro or ultra badge.

The dimension -e- is measured from the lower edge of the badge to the upper edge of the allroad badge.

Market-Specific

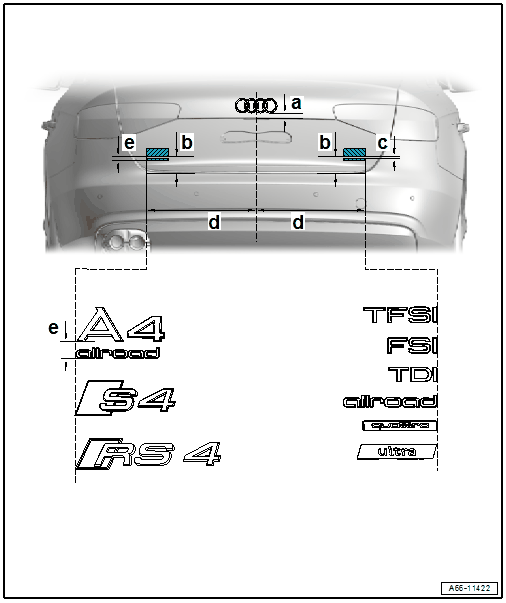

Fig 3: Placing Name Badges And Emblems On Rear Lid (Avant, 3 Of 3)

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 20 mm
Dimension -b- = 89 mm
Dimension -c- = 4 mm
Dimension -d- = 458 mm

NOTE:

The dimension -c- is measured from the lower edge of the badge to the upper edge of the allroad or quattro badge.
