Side Panel Wheel Cover

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

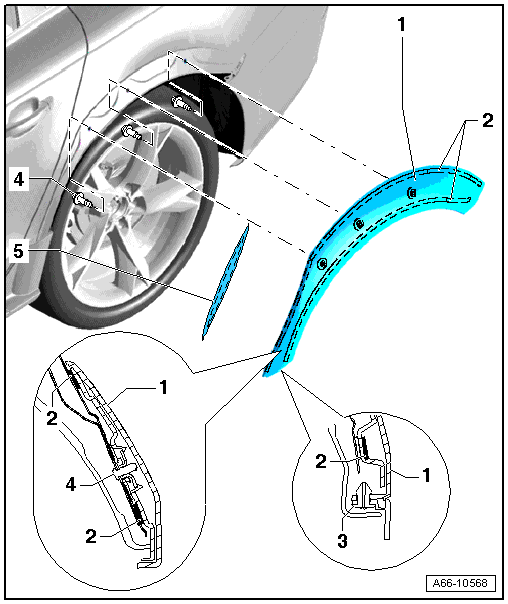

Fig 1: Identifying Rear Wheel Arch Cover

Courtesy of AUDI OF AMERICA, LLC

Side Panel Trim
- Removing:
  -- Remove the bolts under the wheel housing liner.

  -- Remove the expanding clip under the wheel housing liner, heat the adhesive surface with a hot air blower and remove the trim in stages.
- Installing:
  -- Clean the adhesive surface with Cleaning Solution D 009 401 04 and remove adhesive residue with Adhesive Strip Remover VAS6349, if necessary.

  -- Apply the Adhesive -D 355 205 A2- with Applicator -D 009 500 25- in the adhesion area and let it dry for 10 minutes.

  -- Bend the protective film sideways so that they can be reached when the side panel trim is dismantled.

  -- Place it on the sill panel trim and door cover according to the contour with gap dimensions when installing. Refer to Side Panel Gap Dimension/Sill Panel Trim .

  -- Remove the protective film on the removal tabs between the side panel and trim and press it on by hand in stages.

  -- Tighten the bolts in the order center; rear and front.

  -- Install the expanding clip in the cover.
Adhesive Tape
- Pull off protective foil before installing
Wheel Housing Liner
Bolt
- 2.5 Nm
Rear Door Trim
- To remove, warm adhesive surfaces with hot air gun and gradually pull off trim.
  -- Clean the adhesive surface with Cleaning Solution D 009 401 04 and remove adhesive residue with Adhesive Strip Remover VAS6349, if necessary.

  -- Apply the Adhesive -D 355 205 A2- with Applicator -D 009 500 25- in the adhesion area and let it dry for 10 minutes.
- Position according to contours when installing and gradually press on firmly by hand.
