Sill Panel Trim, Removing And Installing, AUDI RS 4: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the rear aerodynamic trim panel. Refer to OVERVIEW - UNDERBODY PANELS .

-- Loosen the expanding clip -2, 3-.

-- Remove the sill panel trim -1- near the fender from the retainer in direction of -arrow-.

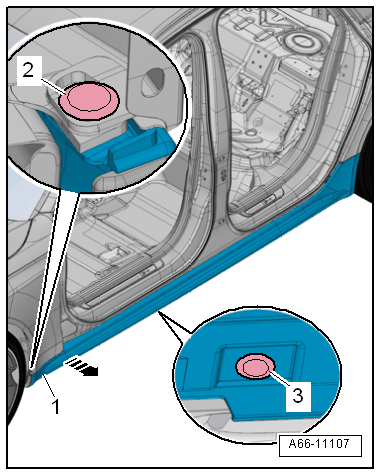

Fig 1: Locating Expanding Clip -2, 3-

Courtesy of AUDI OF AMERICA, LLC

-- Open all of the doors.

-- Carefully warm the sill panel trim -1- using Hot Air Blower VAG1416.

-- Carefully loosen the adhesive -2, 3- from the side panel.

-- Remove the sill panel trim -1- with help from a second technician.

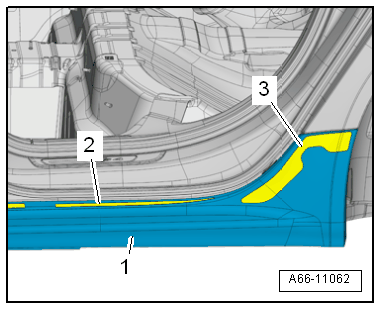

Fig 2: Removing Sill Panel Trim -1-

Courtesy of AUDI OF AMERICA, LLC

First remove the sill panel trim securing tabs from the side panel.
Then remove the securing tabs from the sill.
