Sill Panel Trim, Removing And Installing, AUDI RS 4: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

NOTE:

Replace the damaged clips and expanding nuts.

-- Clean the adhesive surface on the vehicle body with Cleaning Solution D 009 401 04.

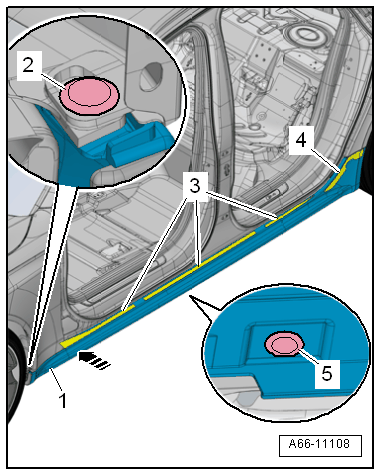

Fig 1: View Of Sill Panel Trim Clips

Courtesy of AUDI OF AMERICA, LLC

Install the sill panel trim in the following sequence -1 through 7- :

-- 1. Position the sill panel trim -2- on the sill -1-. The securing tabs -3- sit loosely in the mounts when doing this.

-- 2. Press the front of the sill panel trim -1- into the mount on the fender in direction of -arrow-.

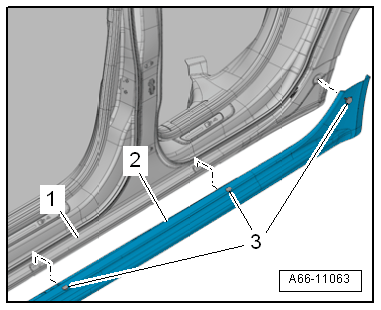

Fig 2: Installing Sill Panel Trim -1-

Courtesy of AUDI OF AMERICA, LLC

-- 3. Remove the protective film from the rear adhesive tape -4- and install the expanding clips -4-.

-- 4. Remove the protective film from the back towards the front from the adhesive strips -3-. The sill panel trim must not be pressed in yet while doing this.

-- 5. Install the securing tabs into the mount.

-- 6. Attach the entire length of the sill panel trim to the sill starting from the rear and moving towards the front with the Roller 3356.

-- 7. Install the front expanding clip -2-.

Resting time approximately 30 minutes at room temperature
Wait at least 24 hours before using.

-- Install the rear aerodynamic trim panel. Refer to OVERVIEW - UNDERBODY PANELS .

-- Install the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
