Sill Panel Trim, Removing And Installing, ALLROAD

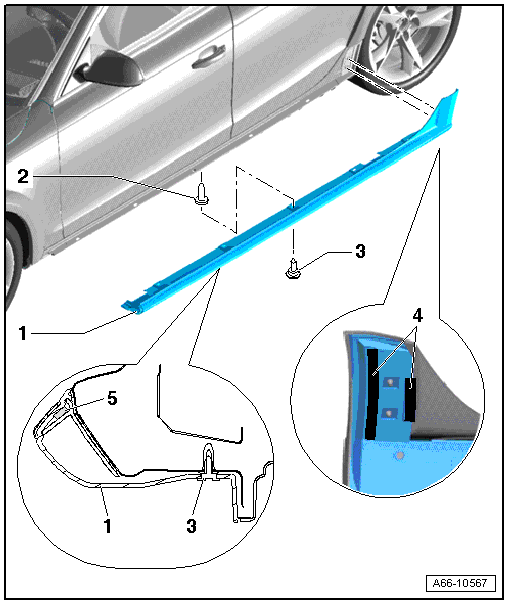

Fig 1: Identifying Sill Panel Cover

Courtesy of AUDI OF AMERICA, LLC

1. Sill Panel Trim

   -- Remove the lower bolts when removing

   -- Starting at the front, remove the sill panel trim from bottom to top from the Velcro fastener for the securing strip.

   -- Install the trim on the securing strip starting at the top when installing.

   -- Press in the upper trim on the Velcro fastener and secure it with the lower bolts.

   NOTE:

   If the same sill panel trim is installed again, the adhesive tape must be replaced.

2. Clip
3. Bolt
   • 1.5 Nm
4. Adhesive Tape
   • Delivery casing for new parts
   • Removing and installing the sill panel trim.
5. Velcro Fastener

Removing and Installing Securing Strip

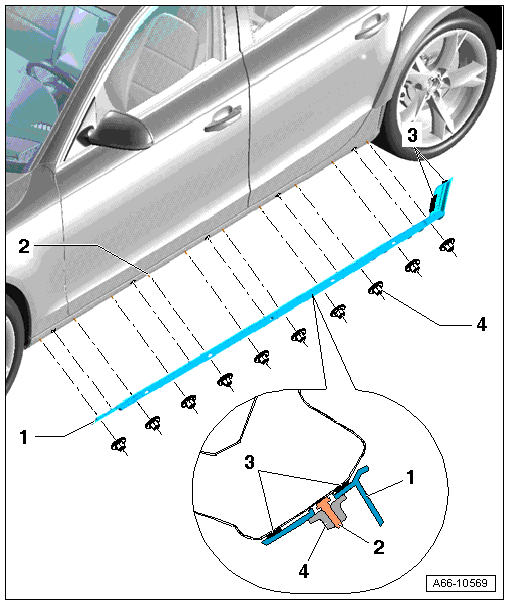

Fig 2: Securing Strip

Courtesy of AUDI OF AMERICA, LLC

1. Securing Strip

   -- Remove the nut and remove the securing strip.

   -- Remove the protective film from the adhesive tape and position and press in the securing strip according to the contour, before installing.

2. Pins
3. Adhesive Tape
4. Nut
   • 2 Nm

Remove the Front Sill Panel Trim

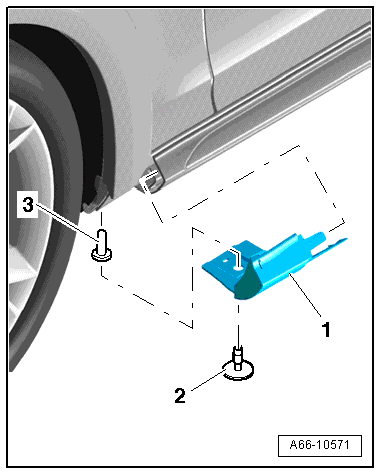

Fig 3: Removing Front Sill Panel Trim

Courtesy of AUDI OF AMERICA, LLC

-- For removal, remove the bolts -2- and the front trim -1-.

-- Tighten the screw to 2.5 Nm.

• 1 front sill panel trim
• 2 screw
• 3 expanding clip
