Coupling Rod, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Installation is the reverse of removal, with special attention to the following:

NOTE:

Note the installation position of the coupling rod.

Bonded rubber bushings can only be turned to a limited extent. Only tighten suspension screws when vehicle is in curb weight or control position.

Lifting wheel bearing to curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING, FRONT AXLE .

-- The bolt -1- for connecting the coupling rod to the stabilizer bar -4- must be attached to the "small" surface -2- of the coupling rod collar and secured with the nut -3-.

Fig 1: Connecting Coupling Rod To Stabilizer Bar

Courtesy of AUDI OF AMERICA, LLC

Tightening specifications. Refer to OVERVIEW - SUBFRAME .

A5 through August 2007

Fig 2: Identifying Connections -1- And -2- & Coupling Rod -3-

Courtesy of AUDI OF AMERICA, LLC

-- Install the threaded connections -1- and -2- but do not tighten them.

-- Lifting wheel bearing to curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING, FRONT AXLE .

-- Tighten connections -1- and -2-.

A4/A5 from September 2007

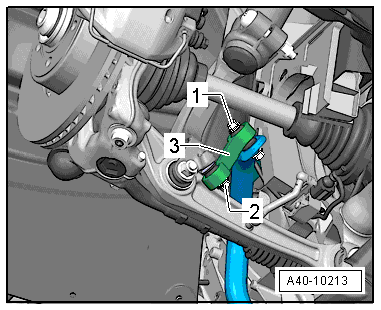

Fig 3: Identifying Coupling Rod And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Install the threaded connections -1- and -3- but do not tighten them.

-- Lifting wheel bearing to curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING, FRONT AXLE .

-- Tighten the threaded connections -1- and -3-.
