Upper Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

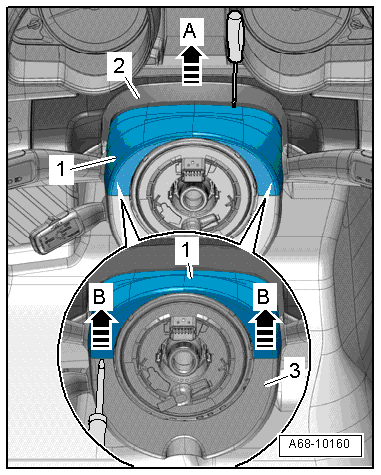

Fig 1: Removing Gap Cover From Upper Steering Column Switch Module Trim

Courtesy of AUDI OF AMERICA, LLC

-- Move the steering wheel as far down as possible.

-- Using a flat-head screwdriver, carefully unclip the gap cover -2- from the steering column switch module upper trim -1- -arrow A-.

-- Rotate the steering wheel 90° out of the straight position.

-- Carefully pry the upper steering column switch module trim off of lower trim -3- using a small flat-head screwdriver -arrows B-.

-- Disengage the upper steering column switch module trim from the lower trim and remove it.

Fig 2: Disengaging Upper Steering Column Switch Module Trim From Lower Trim

Courtesy of AUDI OF AMERICA, LLC
