Lower Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

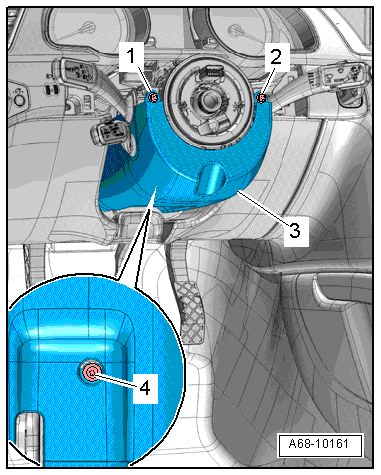

Fig 1: Identifying Lower Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper steering column switch module trim. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Rotate the steering wheel 90° out of the straight position.

-- Remove the bolts -1- and -2-.

NOTE:

When the bolts -1- and -2- are not accessible, the steering wheel must be removed for further work. Refer to Steering .

-- Remove screw -4- and lower steering column switch module trim -3-.
