Driver Side Instrument Panel Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

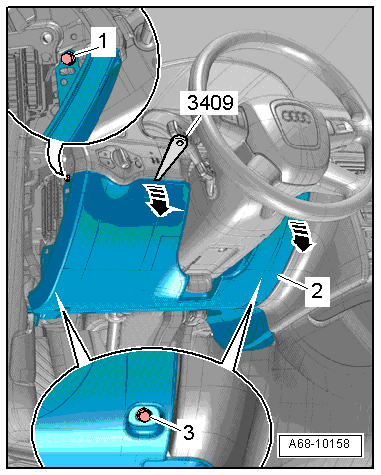

Fig 1: Identifying Driver Side Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side cover from the instrument panel on the driver side. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

-- Remove the side bolt -1-.

-- Remove the lower bolts -3-.

-- Unclip the top edge of the driver side instrument panel cover -2- from the instrument panel using a Trim Removal Wedge 3409 -arrows-.

-- Unclip the 16-Pin Connector -T16- (Data Link Connector).

-- If the vehicle has footwell lamps: disconnect the connector.

-- Disconnect the driver side instrument panel cover.
