Driver Side Instrument Panel Cover, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

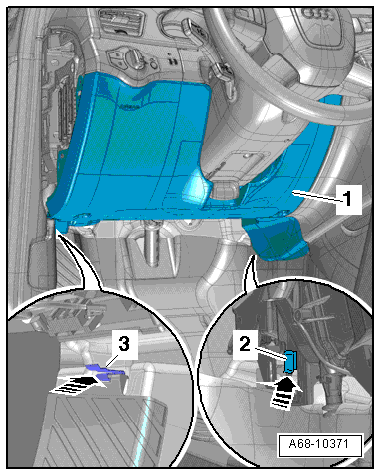

Fig 1: Disconnecting Driver Side Instrument Panel Cover
GWWA68-10371Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Install the lower instrument panel cover -1- into the clips -3- on the footrest and into the clips -2- on the A/C unit -arrows-.
