Hinge Arm Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

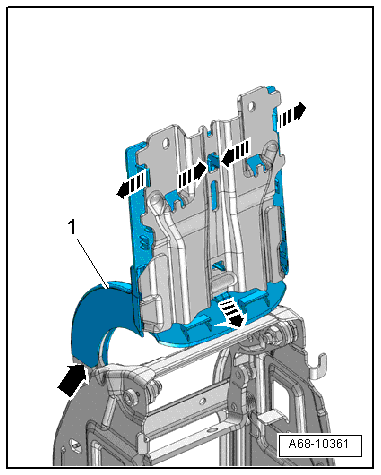

Fig 1: Removing Hinge Arm Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front center armrest padding. Refer to CENTER ARMREST UPPER SECTION, REMOVING AND INSTALLING .

-- Carefully unclip the upper trim -1- from the hinge arm and from the lower trim -arrows- using a small screwdriver.

-- Rear the trim from the rear center console. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

Fig 2: Removing Lower Trim -1- From Front Center Armrest Hinge Arm

Courtesy of AUDI OF AMERICA, LLC

-- Fold of the front center armrest.

NOTE:

The illustration shows the front center armrest removed.

-- Unclip the lower trim -1- from the front center armrest hinge arm -arrows- using a screwdriver.
