Front Center Armrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

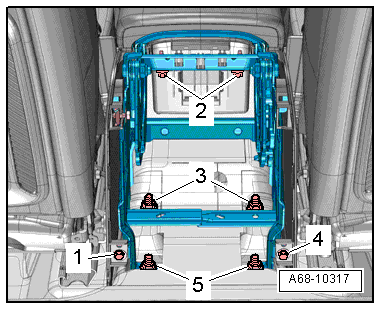

Fig 1: Removing/Installing Center Console Armrest

Courtesy of AUDI OF AMERICA, LLC

-- Rear the trim from the rear center console. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Versions with vent: Remove the air guide for the rear vent. Refer to OVERVIEW - CENTER CONSOLE CONTROLS .

-- Vehicles equipped with a telephone/cell phone: expose the electrical connectors on the bracket.

-- Remove the bolts -1, 2 and 4-.

-- Remove the nuts -3- and -5-.

-- Disengage the top of the center console on the armrest support base by lifting the center console.

-- Pull the armrest support base upward, guide it over the threaded pins and remove it toward the back.
