Sun Shade, Removing And Installing: Installing

Fig 1: Installing Rear Of Rear Shelf -2- On Sun Shade -1

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

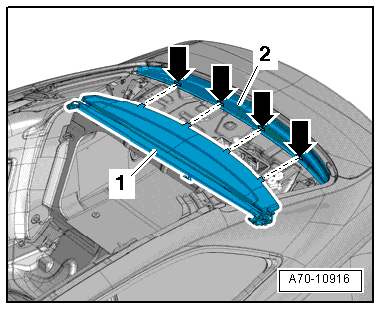

-- If removed, install the rear of the rear shelf -2- on the sun shade -1- -arrows-, aligning both parts to each other.

-- Install the rear shelf and rear sun shade into the rear window frame and tighten.

-- Install the sun shade and rear shelf into the body.

Fig 2: Installing Sun Shade And Rear Shelf Into Body

Courtesy of AUDI OF AMERICA, LLC

• The pins on the rear shelf -1- must fit into the mounts -arrows- under the rear window.

2 - Rear shelf trim

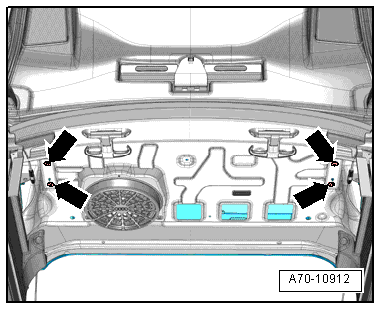

-- Tighten the sun shade bolts -arrows-.

Fig 3: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Carefully install the guide strip -1- into the sun shade connector -arrow-.

Fig 4: Installing Guide Strip -1- Into Sunroof Shade Connector -Arrow

Courtesy of AUDI OF AMERICA, LLC

• The sun shade guide channel must run into the guide strip without the connecting piece being offset.

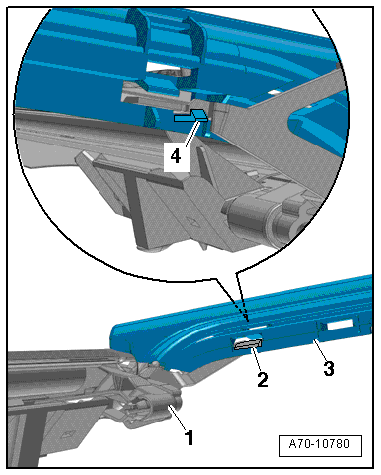

-- Clip the guide strip -3- at both retaining hooks -2- and -4- on the front and rear with the connecting piece -1-.

Fig 5: Clip Guide Strip -3- At Both Retaining Hooks -2- And -4- On Front And Rear With Connecting Piece -1

Courtesy of AUDI OF AMERICA, LLC

-- To ensure the retaining hooks -1- are seated securely, pull them forward until they engage completely using an offset screwdriver -arrow-.

Fig 6: Ensuring Retaining Hooks -1- Are Seated Securely

Courtesy of AUDI OF AMERICA, LLC

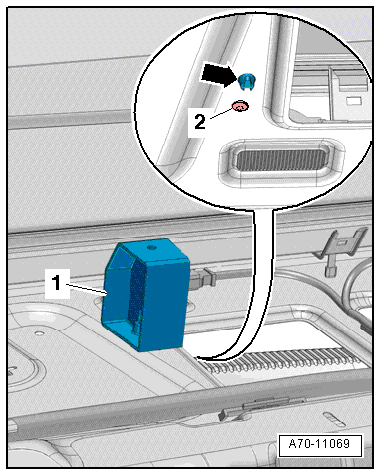

-- Vehicles equipped with an additional rear shelf mount: install the spacer. Refer to Fig 7.

Fig 7: View Of Additional Rear Shelf Mount Spacer

Courtesy of AUDI OF AMERICA, LLC
