Screen Separator, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

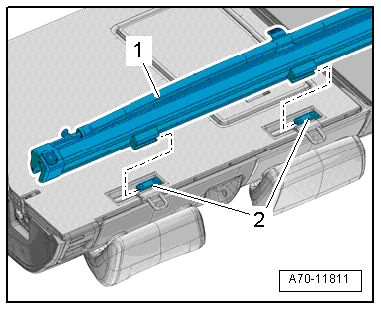

Fig 1: Removing Partition Screen Separator On Rear Seat Backrest
GWWA70-11811Courtesy of AUDI OF AMERICA, LLC

-- Fold both rear seat backrests forward.

-- Remove the screen separator -1- to the right from out of the mounts -2- on the right 2/3 of the rear seat backrest.
