Vehicles without a Front Center Armrest

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

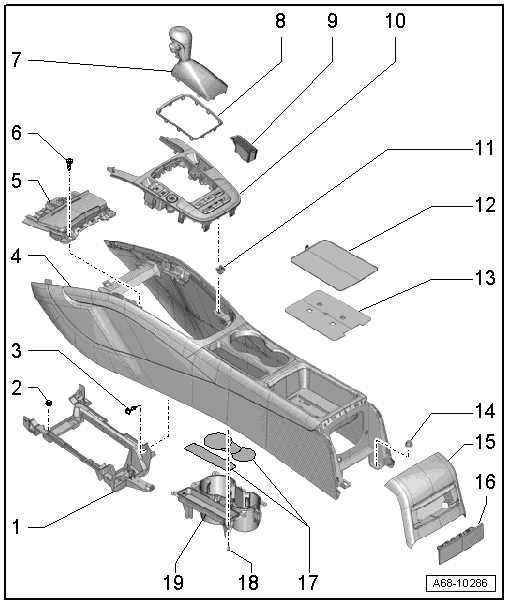

Fig 1: Identifying Center Console Overview, Vehicles Without Front Center Armrest

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For the center console
- Removing and installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nut
- 8 Nm
- Quantity: 4
Bolt
- 3 Nm
- Quantity: 4
Center Console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Front Ashtray
- Removing and installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
- Ashtray Trim, Removing and Installing. Refer to FRONT ASHTRAY TRIM, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- Quantity: 2
Gearshift Lever or Selector Lever
- Gearshift Lever, Removing And Installing. Refer to OVERVIEW - SELECTOR LEVER HANDLE
- Selector Lever, Removing And Installing. Refer to OVERVIEW - SELECTOR LEVER HANDLE
Decorative Frame
Coin Holder
Insert
- For the center console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-, removing and installing. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE, REMOVING AND INSTALLING .
Clip
- Quantity: 6
- Install on the center console insert
Liner
Base Plate
Nut
- 4 Nm
- Quantity: 2
Cover
- For the center console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
Rear Ashtray
- Removing and installing. Refer to REAR ASHTRAY, REMOVING AND INSTALLING .
Liners
Bolt
- 1.4 Nm
- Quantity: 8
Cupholder
- Removing and installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
