Front Center Console Storage Compartment, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

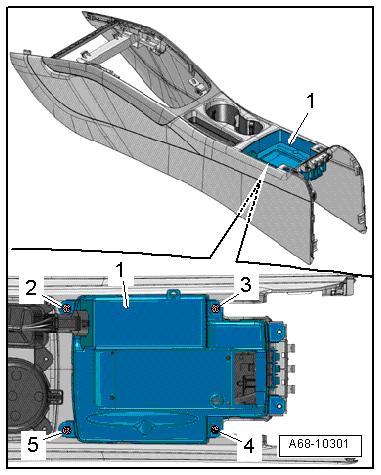

-- Remove the bolts -2 through 5- and remove the storage compartment -1- downward.
-- Versions with telephone/cell phone: Remove the telephone/cell phone. Refer to TELEPHONE SYSTEM .
