Center Console, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Center Console

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the front ashtray FRONT ASHTRAY, REMOVING AND INSTALLING .

-- Vehicles with a 12V socket: Disconnect the connector -2-.

-- Remove the bolts -1- and -3-.

-- Vehicles with a front center armrest: remove the front center armrest. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .

-- Vehicles without a front center armrest: Remove the center console cover (Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING ) and nuts -1-.

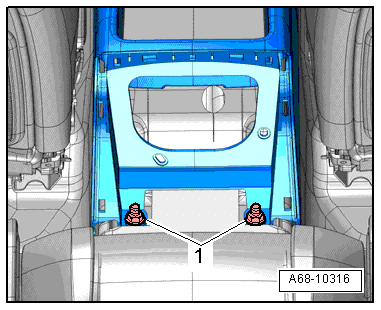

Fig 2: Identifying Nuts -1-

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with a telephone/cell phone: disconnect the connectors.

-- Lift the center console and remove it back out of the instrument panel and over the selector lever/shift lever.
