Center Console Rear Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

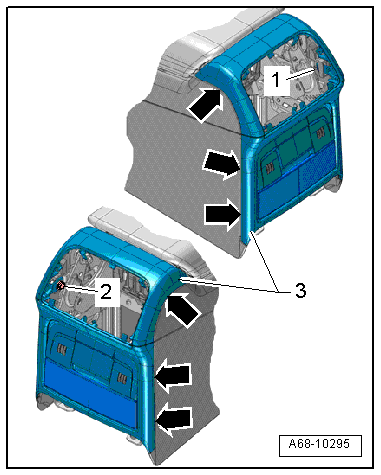

Fig 1: Identifying Center Console Rear Trim

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with a storage compartment: remove the rear storage compartment inside the center console. Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Vehicles with vents: remove the rear vent. Refer to REAR CENTER CONSOLE AIR VENT, REMOVING AND INSTALLING .

-- Remove the bolt -2-.

-- Carefully unclip the trim -3- using a small screwdriver beginning at the bottom -arrows-.

-- Tilt the trim upward while releasing the retaining tab -1- and removing from the center console.

-- Disconnect the electrical connectors, if applicable.

-- Equipment versions with Converter with Socket, 12 V-230 V -U13- : Release the retaining tabs -arrow 1- and remove the 230 V socket -arrow 2-.

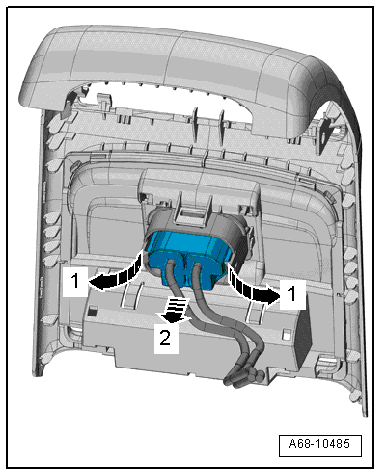

Fig 2: Center Console Rear Trim With Converter
