Center Console Rear Storage Compartment, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Center Console Rear Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Carefully remove lining mat -1- from the retaining studs -arrows-.

-- Mount the T-Handle Hook 3438 into the lower holes in the storage compartment and at the same time push the Trim Removal Wedge 3409 into the gap between the storage compartment and the center console.

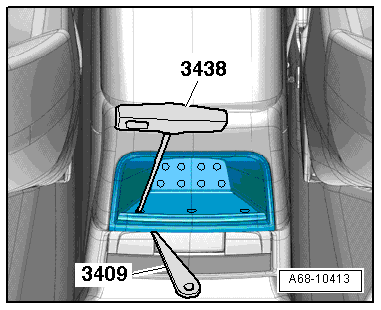

Fig 2: Disengaging Storage Compartment All Way Around

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the storage compartment all the way around and remove it.
