Center Console Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

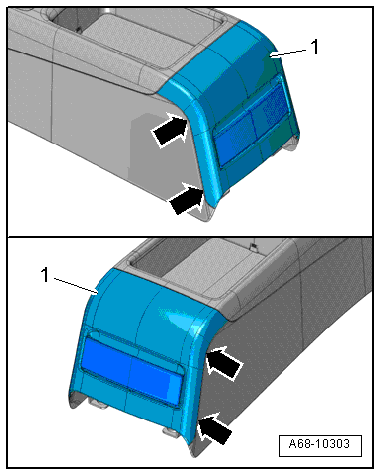

Fig 1: Removing Trim Cover From Center Console
GWWA68-10303Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the cover -1- using a small screwdriver beginning at the bottom -arrows-.

-- Tilt the trim upward and remove it from the center console.
