Center Console Bracket, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Versions with access/start authorization antenna: Remove the Access/Start System Antenna 1 in Vehicle Interior -R138-. Refer to OVERVIEW - CENTER CONSOLE CONTROLS .

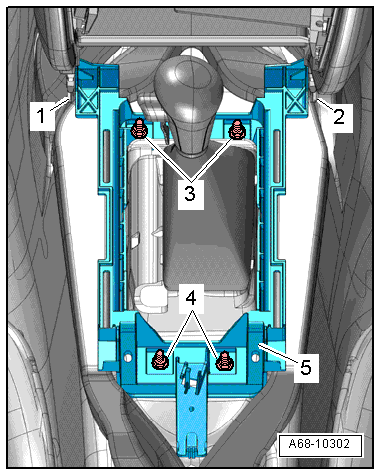

-- Remove the nuts -3- and -4-.
-- Disengage the bracket -5- at the tabs -1- and -2- and remove.
