CUPHOLDER, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

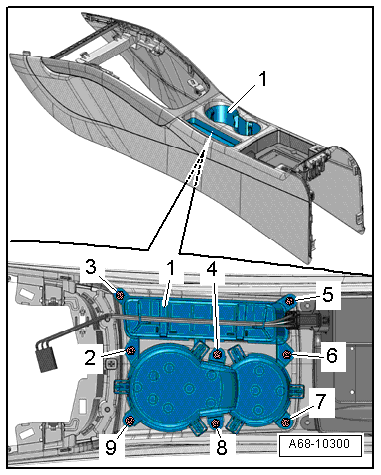

Fig 1: Identifying Center Console Cupholder

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

-- Remove the bolts -2 through 9- and remove the cup holder -1- downward.

-- Versions with Converter with Socket, 12 V-230 V -U13- : Remove the screws -arrows-, remove the converter with the socket -item 1- from the cupholder -2-.

Fig 2: Identifying Center Console With Converter With Socket 12V - 115V

Courtesy of AUDI OF AMERICA, LLC
