Glove box light, removing and installing

WARNING: This page is about a different car, the 2002 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Remove glove box light to replace bulb.
Bulb for glove box light : 12 V, 5 W

Removing

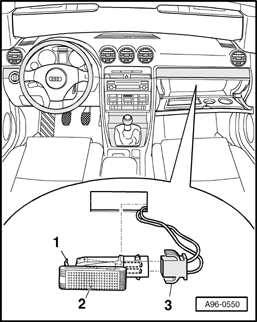

Fig 1: Identifying Glove Box Light And Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Using a flat screwdriver, press in retaining tab -1- and pry out glove box light -2-.
Unplug connector -3-.
Remove bulb from socket on back side of glove box light.

Installing

Installation is reverse of removal, paying attention to the following:

Plug in connector.
Insert glove box light into opening and engage on opposite side.
