Footwell light, removing and installing

WARNING: This page is about a different car, the 2002 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Remove footwell lights to replace bulbs.
Bulb for footwell light: 12 V, 5 W

Removing

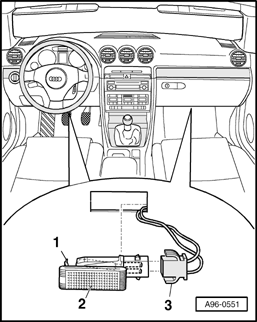

Fig 1: Identifying Footwell Light And Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Using a flat screwdriver, press in retaining tab -1- and pry out footwell light -2-.
Unplug connector -3-.
Remove bulb from socket on back side of footwell light.

Installing

Installation is reverse order, paying attention to the following:

Plug in connector.
Insert footwell light in opening and clip in at opposite side.
