General overview

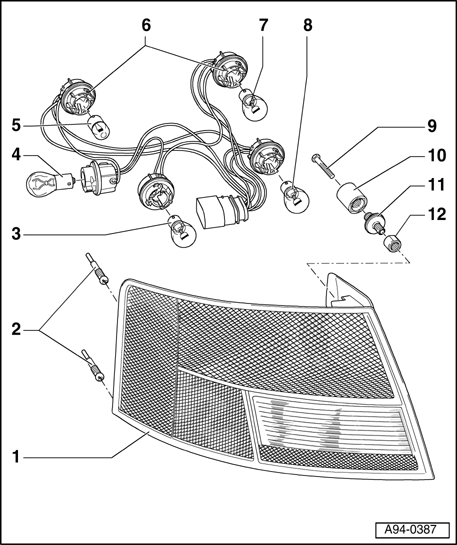

Fig 1: Rear Light Housing Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Housing

• Aligning to vehicle contour. Refer to Tail light to vehicle contour, aligning

2 - Retaining bolts

3 - Bulb for turn signal

• 12 V, 21 W
• Orange

4 - Light bulbs for fog lights

• 12 V, 21 W

5 - Light bulb for rear light

• 12 V, 5 W

Fig 2: Rear Light Housing Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

6 - Light bulb socket

7 - Bulb for brake light/backup light

• 12 V, 21/4 W

8 - Bulb for back-up lights

• 12 V, 21 W

9 - Bolt - 6 Nm

10 - Nut -12 Nm

11 - Retainer piece

• Replace if seal is damaged

12 - Adjustment nut
