Amplifier for the rear speakers or BOSE amplifier, removing and installing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Removing
- Remove right side trim in luggage compartment.
Refer to 70 - INTERIOR TRIM

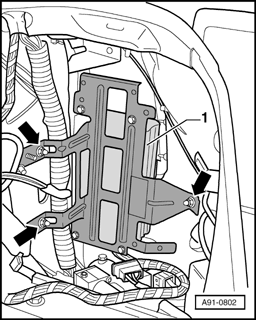

- Remove nuts -arrows- and remove retaining plate with amplifier -1-.
- Unplug the connector.
- If necessary, unbolt amplifier from retaining plate.
Installing
Installation is the reverse of removal, paying attention to the following:
- Tighten threaded connections of retaining plate.
Tightening torques
| Component | Nm | |
| Amplifier to retaining plate | 9 | |
| Retaining plate to chassis | 9 | |
