Front interior lamp module, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Special Hook 3370

GW00003536

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hook 3370

Removing

Fig 2: Removing Interior Lamp Module Trim Using Hook 3370

GW00021420

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully remove interior lamp module trim using hook 3370 as illustrated - arrow -.

Fig 3: Disconnection Microphone Electrical Connection

GW00021463

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Where applicable, disconnect microphone electrical connection - 1 -.

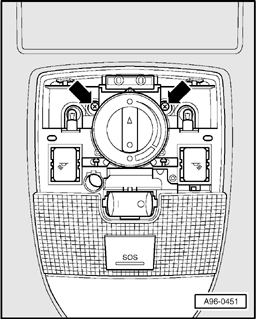

Fig 4: Locating Screws

GW00021761

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - arrows -.
Swivel down module and remove from opening in headliner.
Disconnect electrical connections.

Installing

Install in reverse order of removal, noting the following:

Engage interior lamp module and tighten screws to 3 Nm.
