Headlamp securing lugs, servicing
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If headlight securing lugs break due to application of excessive force, it may still be possible to service headlight in a cost effective manner (though headlight housing must not be damaged).
- Different repair sets are available for left and right headlight.
Procedure
- Remove headlamp with broken lug → Headlamps, removing and installing .
- Remove remains of broken lugs from headlamp housing.

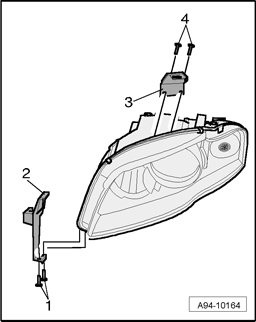

- Fit lugs - 2 - and - 3 - from repair kit on headlamp housing and secure with screws - 1 - and - 4 -.
Tightening torque
| Component - fastener | Nm |
| Headlamp to lock carrier - screw | 4.5 |
