Toothed belt cover, removing and installing

WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

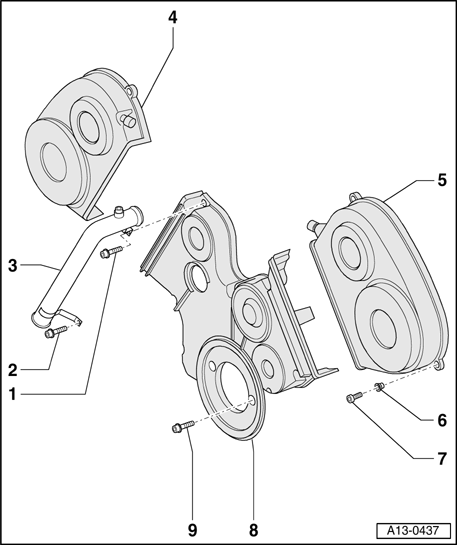

Fig 1: Toothed Belt Cover Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 10 Nm

2 - 10 Nm

3 - Front coolant pipe

Only remove bolts item -1- and item -2- to remove toothed belt guide
Coolant hoses remain connected at coolant pipe

4 - Toothed belt guard, front right

5 - Toothed belt guard, front left

6 - Socket

7 - 6 Nm

Self-locking
Always replace

8 - Lower toothed belt cover

9 - 10 Nm
