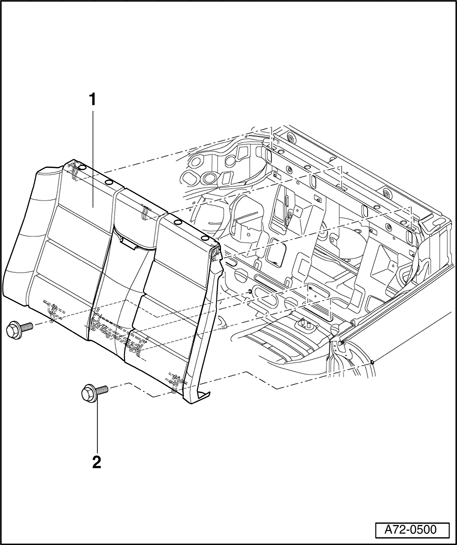

Rear seat backrest, assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Rear seat backrest
- Removing
- Remove rear bench seat → Rear seat bench, assembly overview .
- Remove head restraints → Head restraints, removing and installing .
- Remove head restraint guides → Head restraint guides, removing and installing .
- Open convertible top compartment to gain access to belt guides of rear seat belts.
- Disengage seatbelt guides (2x) at left and right → Rear 3-point seat belt with belt tensioner, assembly overview , Item - 2 -.
- Remove center armrest.
- Remove cord at fabric cover of belt buckles Cord at fabric cover of belt buckles, removing and installing
- Remove bolts - 2 - (2x).
- Remove rear seat backrest - 1 -.
- With seat heating: Disconnect connector for seat heating.
- Installing
- With seat heating: Connect connector for seat heating.
- Guide rear seat backrest - 1 - in at bottom.
- Push rear seat backrest - 1 - upward and engage rear seat backrest - 1 - at top (3x).
- Press rear seat backrest - 1 - fully down.
- Install bolts - 2 - (2x).
- Install head restraint guides → Head restraint guides, removing and installing .
- Install head restraints → Head restraints, removing and installing .
2 - Bolts (2x)
- Tightening torque 8 Nm
