Seat height adjuster, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

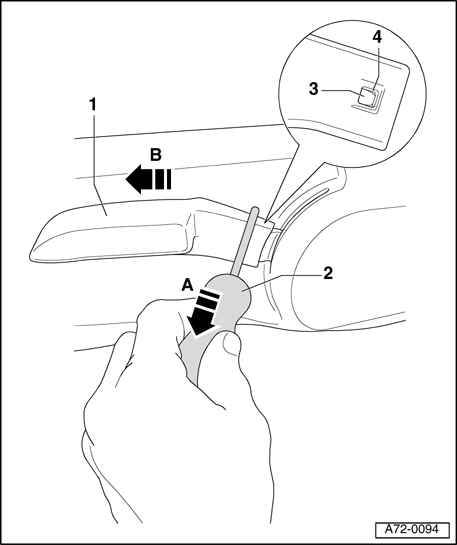

1 - Seat height adjuster
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Make improvised tool → Making improvised tool for removing seat height adjuster
- Pull seat height adjuster - 1 - slightly off seat.
- Insert improvised tool - 2 - in mount - 4 -.
- Pull improvised tool - 2 - in direction of arrow - A - to press spring - 3 - outward.
- Remove seat height adjuster - 1 - in direction of arrow - B -.
- Installing
- Make sure clip is attached to lever of seat height adjuster. Observe installation position → Installation position of clip
- Install seat height adjuster - 1 - in reverse order of removal.
2 - Improvised tool
3 - Spring
4 - Mount
