Easy-entry facility handle, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

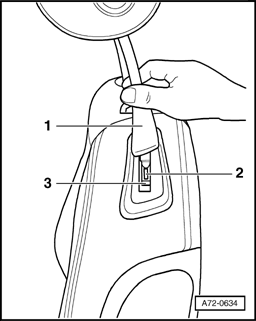

Fig 1: Easy-Entry Facility Handle Remove/Install Components

GW00021233

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press handle - 1 - upward.
Use screwdriver to pry tab - 3 - out of metal pin - 2 - and at the same time detach handle - 1 -.

Installing

Install easy-entry facility handle - 1 - in reverse order of removal.

NOTE:

In order to be able to press in the handle, the metal pin in the cover plate aperture must be pushed upward with a screwdriver.
