Easy-entry facility (manual), removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

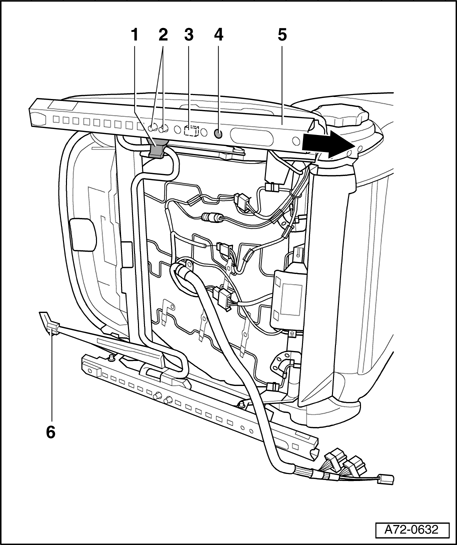

1 - Lever
2 - Pins (2x)
3 - Easy-entry facility (manual)
- Removing
- Move front seat forward as far as possible.
- Remove seat → Seat, assembly overview .
- Drill out rivet - 4 - at runner - 5 - and take out metal holders (2x) on inside of runner - 5 -.
- Press lever - 1 - until pins - 2 - (2x) are in runner - 5 - and pull runner - 5 - to rear in direction of - arrow -.
- Remove easy-entry facility - 3 -.
- Installing
- Guide easy-entry facility into runner Guiding easy-entry facility into runner
- Installing easy-entry facility - 3 - in reverse order of removal.
4 - Rivet
5 - Runner
6 - Handle for length adjustment
