Front seat backrest, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Observe relevant safety precautions for vehicles installed with side airbags →
Additional safety precautions for side airbag .

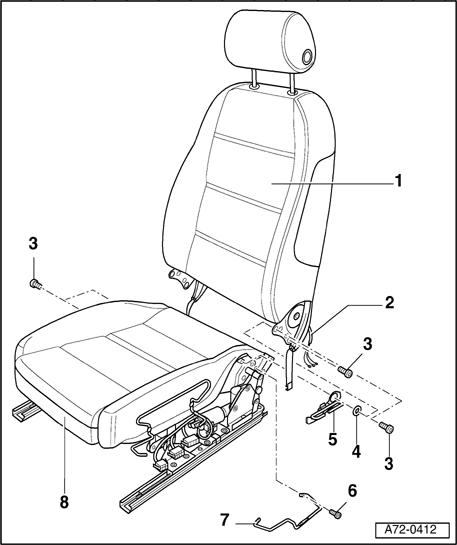

1 - Backrest
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove side trim, outboard side → Side trim on sill panel side, removing and installing .
- Remove side trim, inboard side → Side trim, inboard side, assembly overview .
2 - Wiring harness
3 - Bolts (4x)
- Tightening torque 20 Nm
4 - Plastic washer
5 - Bracket
6 - Bolt
7 - Clip
8 - Seat pan

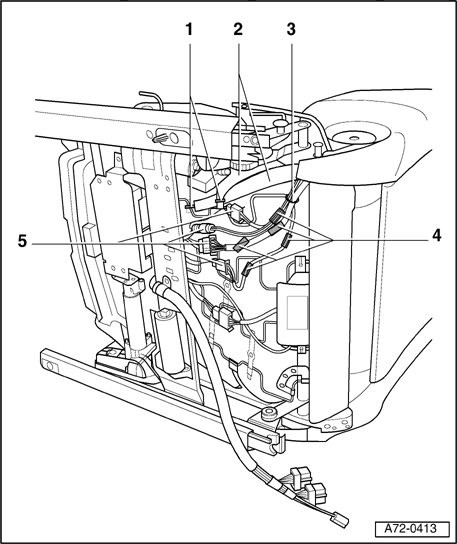

1 - Cable ties (2x)
- Open cable ties - 1 - (2x).
- Detach rubber straps - 2 - (2x).
- Disconnect connectors - 5 - (4x).
- Remove cable tie - 3 - on wiring harness.
- Detach adhesive strips on mounting rails - 4 - (5x).
2 - Rubber straps (2x)
3 - Cable tie
4 - Mounting rails (5x)
5 - Connectors (4x)
1 - Backrest
- Removing
- Remove bolt - 6 -.
- Twist clip - 7 - upward.
- Remove bolts - 3 - (4x).
- Tilt backrest - 1 - forwards onto seat.
- Move padding to one side and carefully lift wiring harness - 2 - out of seat pan - 8 -.
- Remove backrest - 1 -.
- Installing
- To instal clip - 5 - : Secure bolt - 6 - firmly to plastic washer - 4 -.
- Always use new bolts - 3 - (4x).
- Before inserting bolts - 3 - (4x) recut the thread in the backrest frame.
- For memory seat: After installing seat in vehicle perform basic setting of backrest and seat.
2 - Wiring harness
3 - Bolts (4x)
- Tightening torque 20 Nm
4 - Plastic packing plate
5 - Bracket
6 - Bolt
7 - Clip
8 - Seat pan
