Connectors, disconnecting

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The mechanic must electrostatically discharge him/herself before disconnecting ignition and ground (GND) wires (briefly touch closing wedge for door or body).

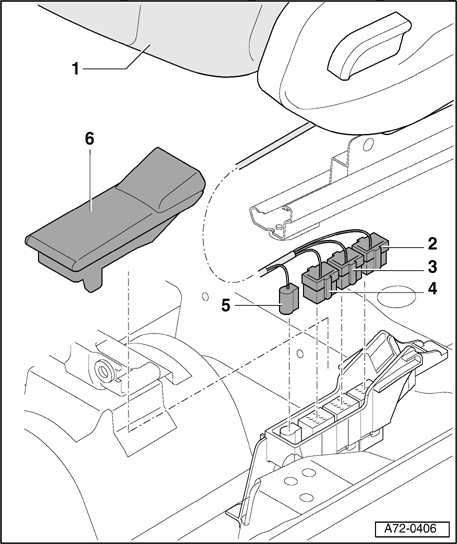

Fig 1: Disconnecting Connections

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat

2 - Buckle interrogation connector (black)

3 - Seat heating connector (green)

4 - Power supply connector (red)

5 - Airbag connector (yellow)

6 - Connector point cover

Removing

Tilt front seat - 1 - back.
Remove connection point cover - 6 - upward.
Press tab on airbag connector - 5 - inboard side and remove airbag connector - 5 -.
Connect airbag adapter → Airbag adapter VAS 6036 , connecting .

Press tab on power supply connector - 4 - inboard side and remove power supply connector - 4 -.
Press tab on seat heating connector - 3 - inboard side and remove seat heating connector - 3 -.
For vehicles with buckle interrogation: Press in tab on buckle interrogation connector - 2 - inboard side and remove buckle interrogation connector - 2 -.
