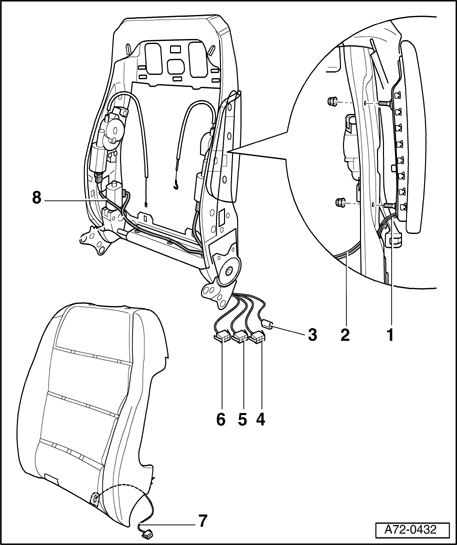

Backrest wiring assignment
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Airbag wiring harness
2 - Electric lumbar support wiring harness for 4-pin side airbag
3 - Airbag connector
4 - Electric lumbar support connector for 4-pin side airbag
5 - Electric lumbar support connector
6 - Backrest heating connector
7 - Backrest heating wiring harness
8 - Electric lumbar support wiring harness, inboard side
