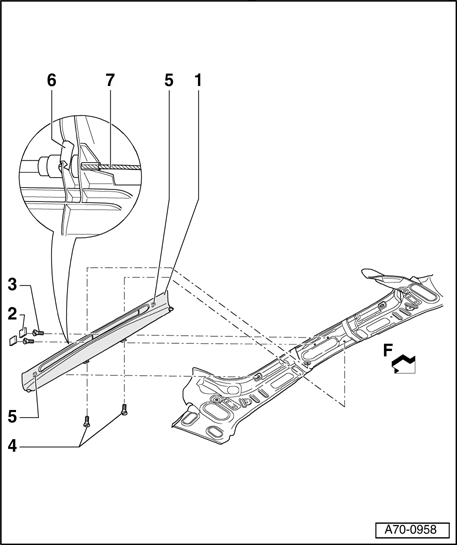

Handle mount trim, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Handle mount trim
NOTE:
- Convertible top must be closed.
- Removing
- Pry out cover - 2 - using a small flat screwdriver.
- Remove bolt - 3 -.
- Turn handle.
- Pry out cover - 2 - on other side, using a small flat screwdriver.
- Remove second bolt - 3 -.
- Remove bolts - 4 - from underneath.
- Unclip handle mount trim - 1 - from clips - 5 - (2x).
- Pry out clamp - 6 - (always replace clamp - 6 -).
- Detach Bowden cable - 7 - from handle.
2 - Cover (2x)
3 - Bolts (2x)
- Tightening torque 9 Nm
4 - Bolts (2x)
- Tightening torque 7 Nm
5 - Clips (2x)
6 - Fastener
- Always replace
7 - Bowden cable
