Convertible top compartment lid, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

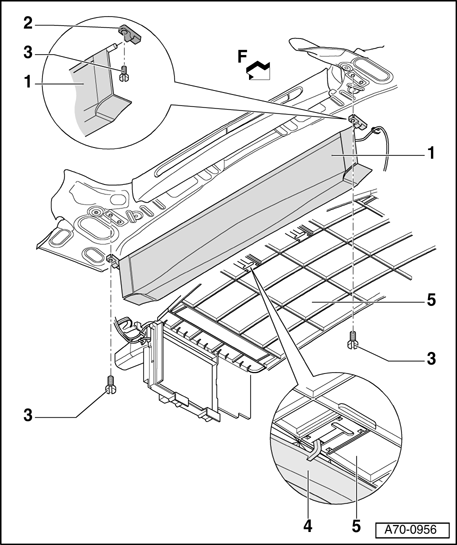

Fig 1: Convertible Top Compartment Lid, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Convertible top compartment lid

NOTE:

The variable convertible top compartment must be in the lowest position.
The hinges - 2 - must not be unscrewed to remove convertible top compartment lid - 1 -.
Arrow faces in direction of travel.

Removing
Bend convertible top compartment lid - 1 - back on one side on hinge and detach convertible top compartment lid - 1 - from hinges.
Fold convertible top compartment lid - 1 - downward.
Detach lid on hooks - 4 - (2x) by pushing forward.

2 - Hinge (2x)

Bend convertible top compartment lid - 1 - back on one side on hinge and detach convertible top compartment lid - 1 - from hinges.
Remove bolt - 3 -.
Detach hinge - 2 - from body.

3 - Bolt (2x)

4 - Hook

5 - Variable convertible top compartment
