Console of variable convertible top compartment, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

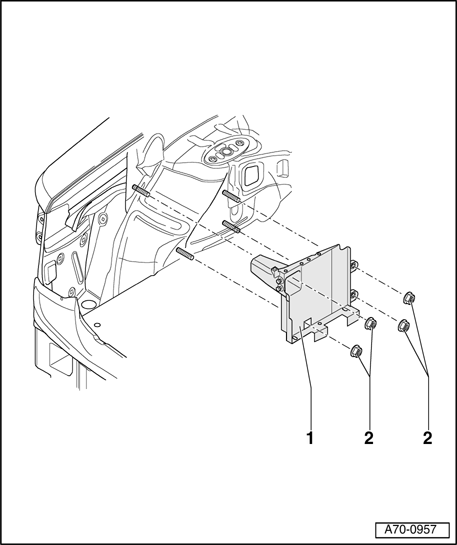

Fig 1: Console Of Variable Convertible Top Compartment, Assembly Overview
GW00021224Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Console

2 - Nuts (4x)
