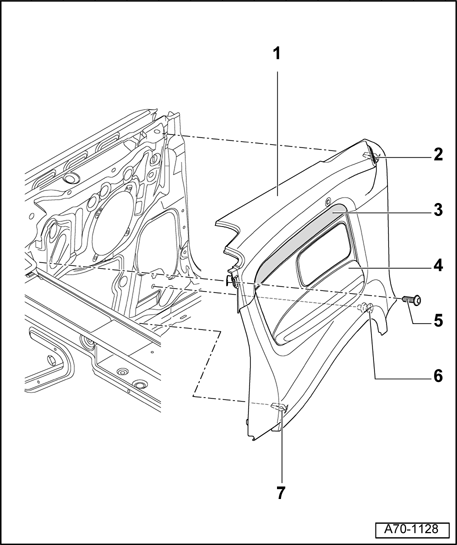

Rear side trim, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Side trim
- Removing
- Remove rear bench seat → Rear seat bench, assembly overview .
- Remove rear seat backrest → Rear seat backrest, assembly overview .
- Remove decorative panel → Decorative panel, removing and installing .
- Unclip center piece - 4 -.
- Remove bolt - 5 -.
- Reach into side trim - 1 - and unclip side trim - 1 - at clips - 2 - , - 7 - and - 6 -.
- Remove side trim - 1 -.
- If side trim - 1 - is to be replaced:
- Remove anchorage point for outer floor panel → Front anchorage point for outer floor panel .
- Installing
NOTE:
- After installation ensure that seal is pulled correctly over side trim.
- Pull back clip - 6 - to loosen clip - 6 -.
- Install side trim - 1 - in reverse order of removal.
2 - Clip
3 - Decorative panel
4 - Center piece
5 - Bolt
6 - Clip
7 - Clip
