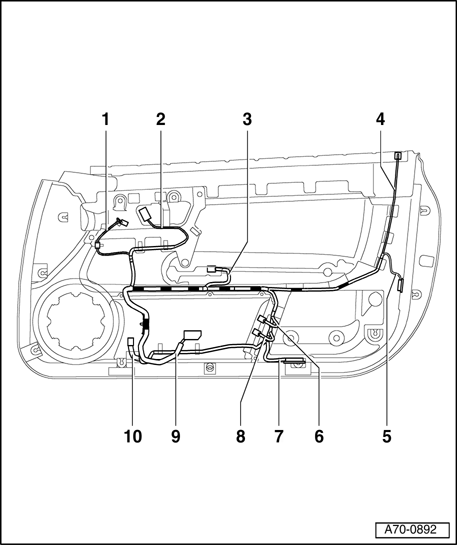

Exploded view of door trim cable routing
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Cable to mirror adjustment switch
2 - Cable to central locking system switch
3 - Cable to switch panel for window regulator
4 - Cable to display of anti-theft alarm
5 - Cable to door warning light
6 - Cable to anti-theft alarm deactivation switch
7 - Cable to courtesy light
8 - Cable to tailgate release switch
9 - Cable to window regulator control unit connector
10 - Cable to memory seat switch panel
